CombiScan Evo C: THE scanner for optimizing your cross-cutting
The CombiScan Evo C is specially equipped for cross-cutting applications. It can be upgraded with one of many options for all requirements, offering optimal flexibility. Based on the cutting-edge technology used , it can improve your production decisively.
The scanner is invested with all of WEINIG's experience in cross-cutting optimization in a single package. The variable software and hardware options of the scanner represent leading-edge technology.
Simple optimization is the key to efficient production. The high-performance optimization allows a variety of qualities and zones to be created and combined into end products. Products and qualities are stored in the database and can be selected at any time via drag and drop. The logical user guidance of the scanner simplifies settings and can, therefore, be easily used by all personnel.
With its various sensor options, the scanner can be adapted to customer requirements, guaranteeing ideal results every time. Whether hardwood or softwood, window scantlings or glulam, beads or panels, furniture production or cladding boards, this scanner allows you to achieve optimal results every time.
Different requirements - different prices
The price of a WEINIG machine is just as individual as your requirements are. Therefore, let us discuss briefly what is most important to you – you will then receive our preliminary, non-binding quote.
Personal advice – for higher productivity and greater efficiency
Together with your WEINIG expert you will find the ideal machine for your requirements. Simply submit the completed form, and your local WEINIG expert will be happy to discuss all further details with you.
The WEINIG CombiScan Evo series provides
- Fast return on investment
- Optimization of your products by value, utilization or production objective
- Extensive statistical functions in real time
- Compatible with all high-performance optimizing cross-cut saws, high-performance rip saws and sorting systems
- Optional processing of boards with decreasing widths in one assignment
- Surface scanning with laser and color cameras.
- Optionally upgradable sensor concepts (X-ray technology, humidity and shape measurement and much more)
- Complete defect detection: Unprocessed edges, branches, tears, pith, resin pockets, blue/red rot...
- Tested industrial sensor technology
The WEINIG CombiScan Evo C provides
- Increased recovery since the detection accuracy of the scanner is far superior to manual marking
- Reduced labor costs, since labor-intensive manual marking is eliminated
- Maximum productivity thanks to automated defect detection and optimization
- More flexible production since many different qualities and products can be produced at the same time
- Ability to control the quality of end products according to individual customers, etc.
- Increased quality of end products
Cross-cutting optimization explained simply
Step 1: LuxscanLine scanners are based upon various sensors, such as laser and color cameras or X-ray. Your WEINIG expert will define the right sensors and the best combination of these, harmonized with wood types, surface properties and customer requirements. Our objective is to achieve the best possible quality of information for the required application.
Step 2: Image processing is handled by the highly sophisticated OptiCore software. This detects and identifies defects as well as color deviations on the board. The ideally adapted sensor data ensures optimal data processing and defect detection.
Step 3: Optimization via the high-performance OptiCore software calculates the best solution during cross-cutting. In doing so, it takes into account the various customer requests and requirements. Based upon the precise board data calculated during image processing, the board is optimized in accordance with customer requirements. This allows a virtually unlimited number of qualities and products to be defined. Thus, even complex products can be ideally optimized. This allows the creation of almost any type of end product.

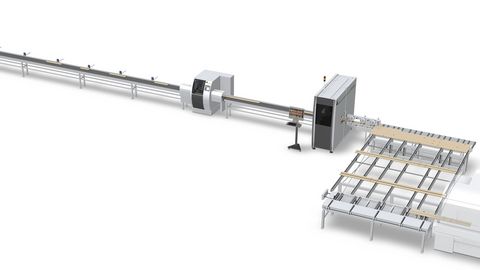

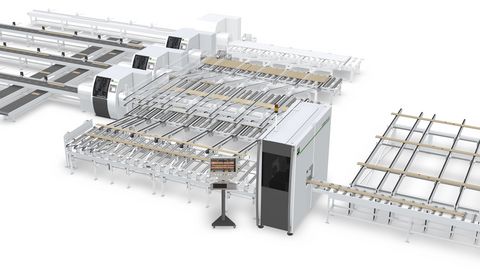

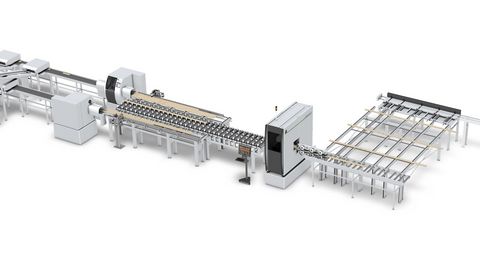

CombiScan Evo C layout suggestions
The CombiScan Evo C is suitable for one or several cross-cut saws.
The sensors: The key to success
All sensors are ideally protected by a dust-proof housing. Our laser cameras are installed in every system as standard sensors. With the fastest speed available on the market, these guarantee a high resolution and optimal results. Performance is continually improved via constant evolution of this industrial sensor system. This technology detects defects such as branches, pith, cracks, etc. A sophisticated laser system also reliably detects 3D surface defects, such as holes and rough edges of the wood.
In addition, color cameras improve the scanner's detection as standard. Higher resolutions, both in the longitudinal and transverse direction, detect color defects as well as cracks and insect holes more reliably than ever before. Different versions of the color camera ensure the ideal scanner performance for every application.
OptiCore: The new benchmark in the world of automated optimization
Beside the sensors, such as laser and color cameras, X-ray, curvature measurement, etc. the software plays the largest role in cross-cutting optimization. Simple operation, convenience and confident decision-making are essential in this area.
The system should be easy to understand, intuitive to operate and reliable in terms of availability and performance. OptiCore software fulfills all of these criteria. With its visual and operational design, inspired by the OptiCom Direct software from DIMTER, operation of both machines is almost identical. OptiCore also offers the trusted optimization structure that allows you to structure your production as quickly and easily as it allows you to produce.
OptiCore is able to process an unlimited number of products and qualities. By specifying qualities in terms of zones, it both increases recovery and enables the customer to achieve greater product diversification. Highly precise specification of qualities allows more specific products to be produced. Combined with the high degree of accuracy in the measurement of wood features, this means your raw material is used significantly more efficiently. The various optimization modes – optimization by value, recovery or production objective – make the scanner technology even more interesting. These allow you, for example, to set production objectives, which are subsequently processed. Processing orders with parts lists is now no longer a problem. The commonly used software interface also creates synergies in the controls of the machines. For example, fill level information for the OptiCut stacker can also be taken into account in the optimization. This is just one additional example of current WEINIG leading-edge technology. That way, you are equipped to deal with the requirements and challenges of the future at all times.
OptiLink: Ideal optimization via connected processes.
Using complex production processes has always been a difficult task. Linking various applications and production lines complicates the flow of information. OptiLink was developed to optimize production management by centralizing the information. With a single access point to all information, just-in-time production is no longer a complex challenge. OptiLink decreases operator errors and reduces the inventory of semi-finished goods. A further benefit is the quick and simple data management with regard to ERP systems. This even allows production of single-item batches thanks to sophisticated statistical functions. Although OptiLink was originally developed purely for linking cross-cut scanners and rip scanners, it is now possible to connect many other cutting-related machines.
Options for extension
Fiber analysis: Maximum cutting accuracy
An essential component of optimizing recovery and value creation is a precise cutting position, particularly with finger jointed products. The "dual scatter" system, comprising a line laser and a dot laser, enables this precision.
ACM angled crack detection: Optimize your crack detection
Detecting angled, non-vertical cracks has always been subject to limitations owing to the positioning of the lasers. Thanks to the use of 4 specially positioned lasers, the Angle Cracks Module (ACM) is able to provide decisive additional information.
X-ray sensor: Enhanced defect detection
X-ray sensors can not only be useful for rough-sawn or dirty surfaces, but also for wood types with wide color variations. Their primary benefit is that localized internal defects are detected via changes in density.
Automatic camera positioning and processing of decreasing widths
The automatic camera positioning moves all cameras into the ideal position, thus guaranteeing optimal picture quality and resolution. It also prevents operator error, thus reducing production losses to a minimum.
ShapeScan: Reliable detection of curvature and warping
The ShapeScan is the ideal option when it comes to detecting a particular curvature and warping as a defect. The cupping can also be optionally measured. The ShapeScan T can calculate the curvature or warping via sensors in the cross conveyor.
Front-end scanner: Quality control the easy way
The front-end scanner is installed behind a cross-cut saw. It scans the cut parts from both sides. This allows defects inside the boards, such as pith, to be detected via their contrast. This information is used for subsequent sorting of products for finger jointing or shared profiles and forwarding of these to a new ejector.
Marking station: Marking of cuts and grades
A marking station is the ideal solution for connecting a scanner to one or more existing cross-cut saws if the operator wants to avoid complex mechanization or direct data connection is not possible. Cuts, qualities and twisting is imprinted on each board so that these are forwarded to the saw free from defects.
Sorting by strength: The ideal option for construction timber
Sorting by density or strength is becoming increasingly important. Information about density and strength can be measured via X-ray and/or fiber analysis or imported from external devices, such as the EScan and used during optimization.
OptiLink: Ideal optimization via connected processes.
Using complex production processes has always been a difficult task. Linking various applications and production lines complicates the flow of information.
